Instruction to build stapler stands

Introduction

Instructions/Materials

Side Frames

Base

Top

Top Edge

Cutouts

Bolts

Assembly

Brackets

Top Assembly

Option Surface

Option Hinges

Wire Holes

Dolly

MAKING THE FOLDING STAPLER DOORS

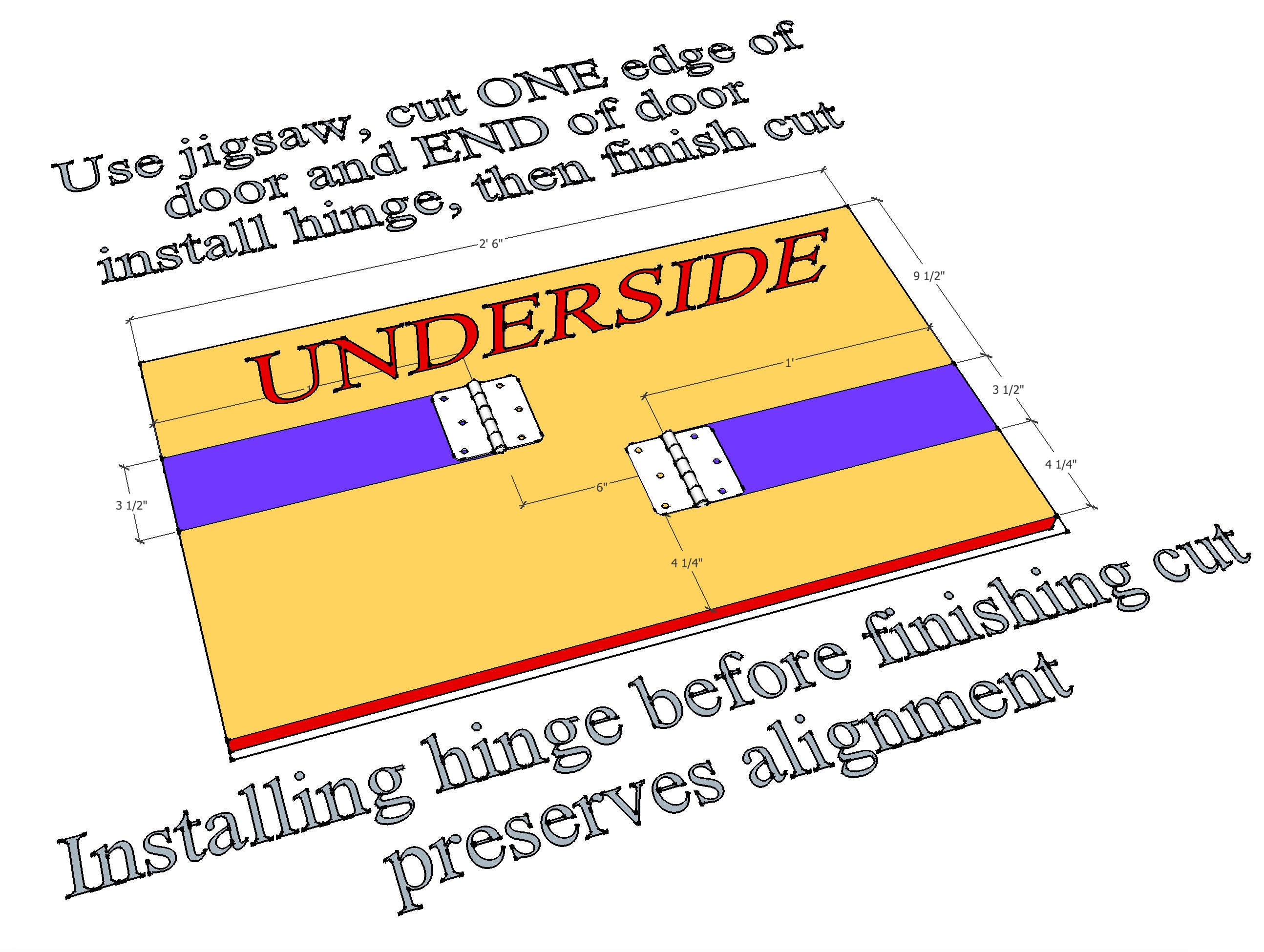

On the underside of the top mark stapler doors 3 1/2 inches wide and 1 foot deep. These doors are 5 and 1/2 inches from each edge (or 4 1/4 inches from an edge if a work surface will be attached.
For a precise door alignment it is recommended that the jig saw cut ONE EDGE around past the end where the hinge goes and then STOP. Install the hinge and only then complete the jig saw cut.
