MAKING THE TOP (WITH AN ATTACHMENT EDGE)

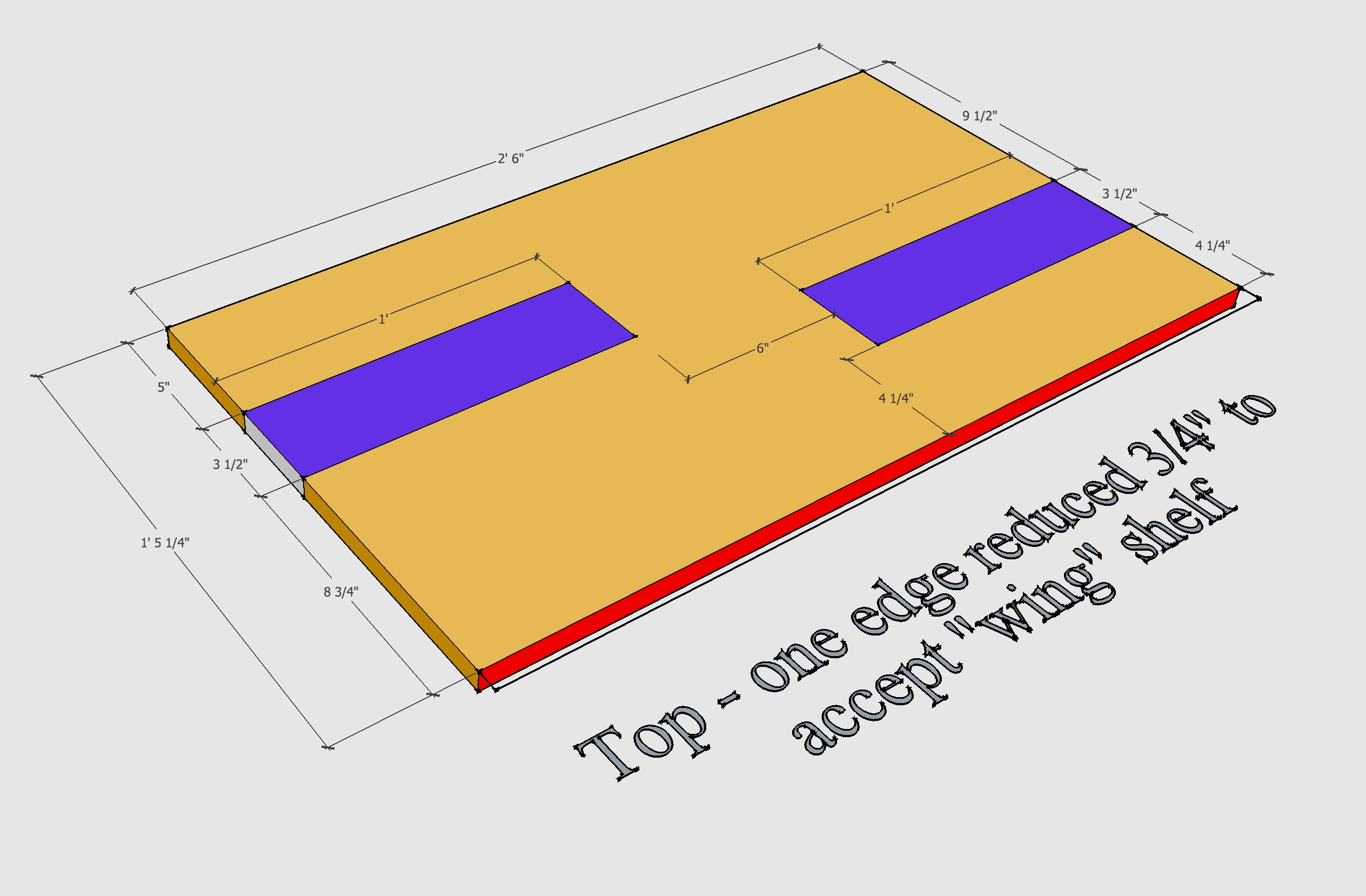

Cut a 3/4" plywood top 2 feet 6 inches by 1 ft 5 and 1/4 inches. Make precise square cuts
to form as perfect a rectangle as possible. The width is reduced 3/4 inch shown in red below. This will leave the edge of the side frame exposed and will serve as rest for the folding work surface of another stand.
The dimensions stated here are for a top that allows one folding work surface to be attached. To attach a second work surface on the other side that side must also be reduced 3/4 of an inch. (Total width will be 1 ft 4 1/2 inches).
